High-Performance Borosilicate Glass Mixing Reactors for Laboratory, Pilot & Small-Scale Production
“Available in cylindrical, spherical, jacketed, and mobile configurations, Aarohi Glass Mixing Reactors are ideal for chemical, pharmaceutical, specialty chemical, API, and R&D applications requiring accurate agitation and temperature control.”
Aarohi Scientific offers precision-engineered Glass Mixing Reactors designed for efficient, controlled mixing of liquids and slurries in laboratory, pilot plant, and small-scale production environments. Manufactured using borosilicate glass 3.3, our glass mixing reactor systems provide unmatched chemical resistance, thermal stability, and complete process visibility.
Standard Models & Dimensions
| Vessel Volume | Unit | Vessel Ref. | SPHRICAL VESSEL UNIT | ||
|---|---|---|---|---|---|
| 20 L | CMR20 | VZ 20/12 | SMR20 | ||
| 50 L | CMR50 | VZ50/16 | SMR50 | ||
| 100 L | CMR100 | VZ100/18 | SMR100 | ||
| 200 L | CMR200 | VZ200/18 | SMR200 | ||
| 300 L | CMR300 | VZ300/24 | SMR300 |
Other sizes available up to 500 L on request.
What is a Glass Mixing Reactor?
A Glass Mixing Reactor or pilot scale glass reactor is a closed or semi-closed glass vessel equipped with a mechanical stirring system used for mixing, blending, dissolution, neutralization, and reaction processes. Unlike metal reactors, glass reactors allow visual observation of mixing behavior, phase separation, vortex formation, and reaction kinetics, making them indispensable for process development and scale-up studies.
Key Features of Aarohi Glass Mixing Reactors
Manufactured from Borosilicate Glass 3.3 (DIN / ISO compliant)
Excellent chemical resistance to acids, alkalis, solvents, and corrosive media
High thermal shock resistance for heating and cooling cycles
Clear visibility for monitoring mixing, reaction progress, and phase behavior
Modular design for easy integration of accessories
Custom-engineered solutions from lab to pilot scale
Glass Mixing Reactor Configurations

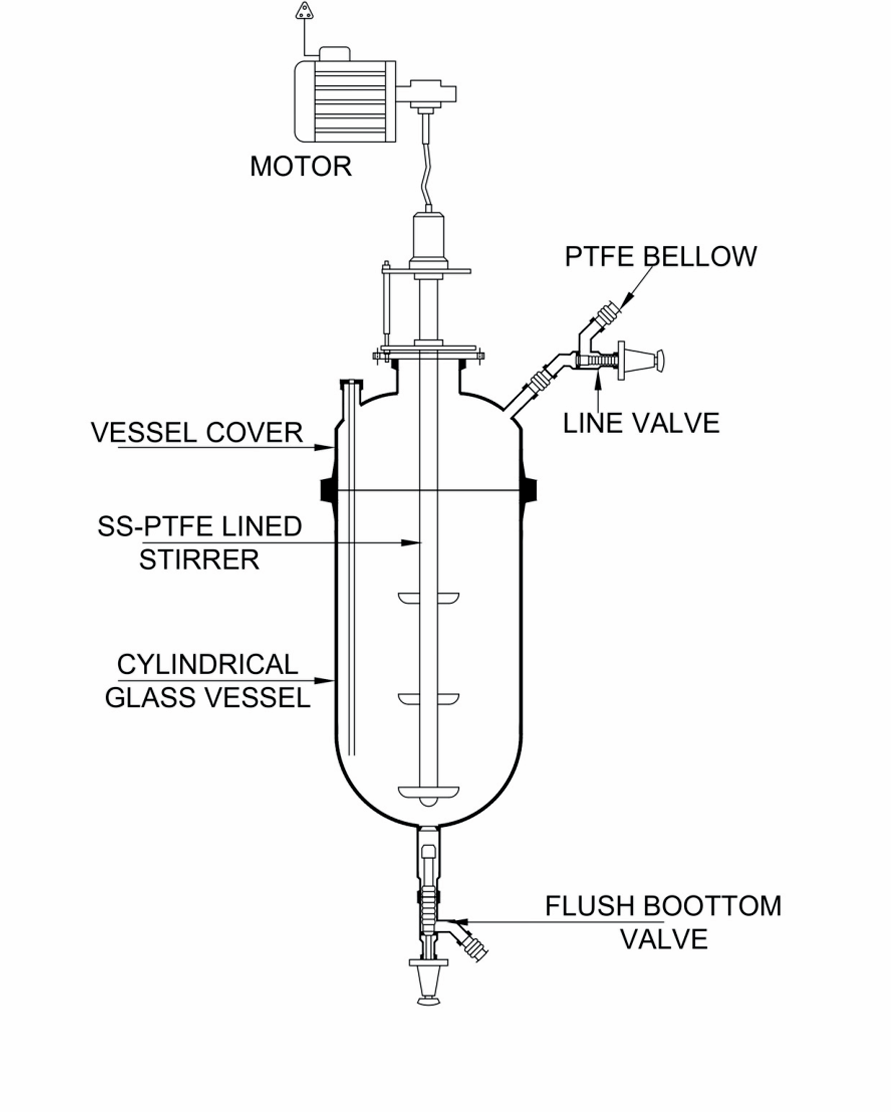

1. Cylindrical Glass Mixing Reactor
Vertical cylindrical vessel with flat or dished bottom
Ideal for uniform mixing and easy scale-up
Available in plain or jacketed design
2. Spherical Glass Mixing Reactor
Improved mixing efficiency with reduced dead zones
Suitable for viscous or multi-phase systems

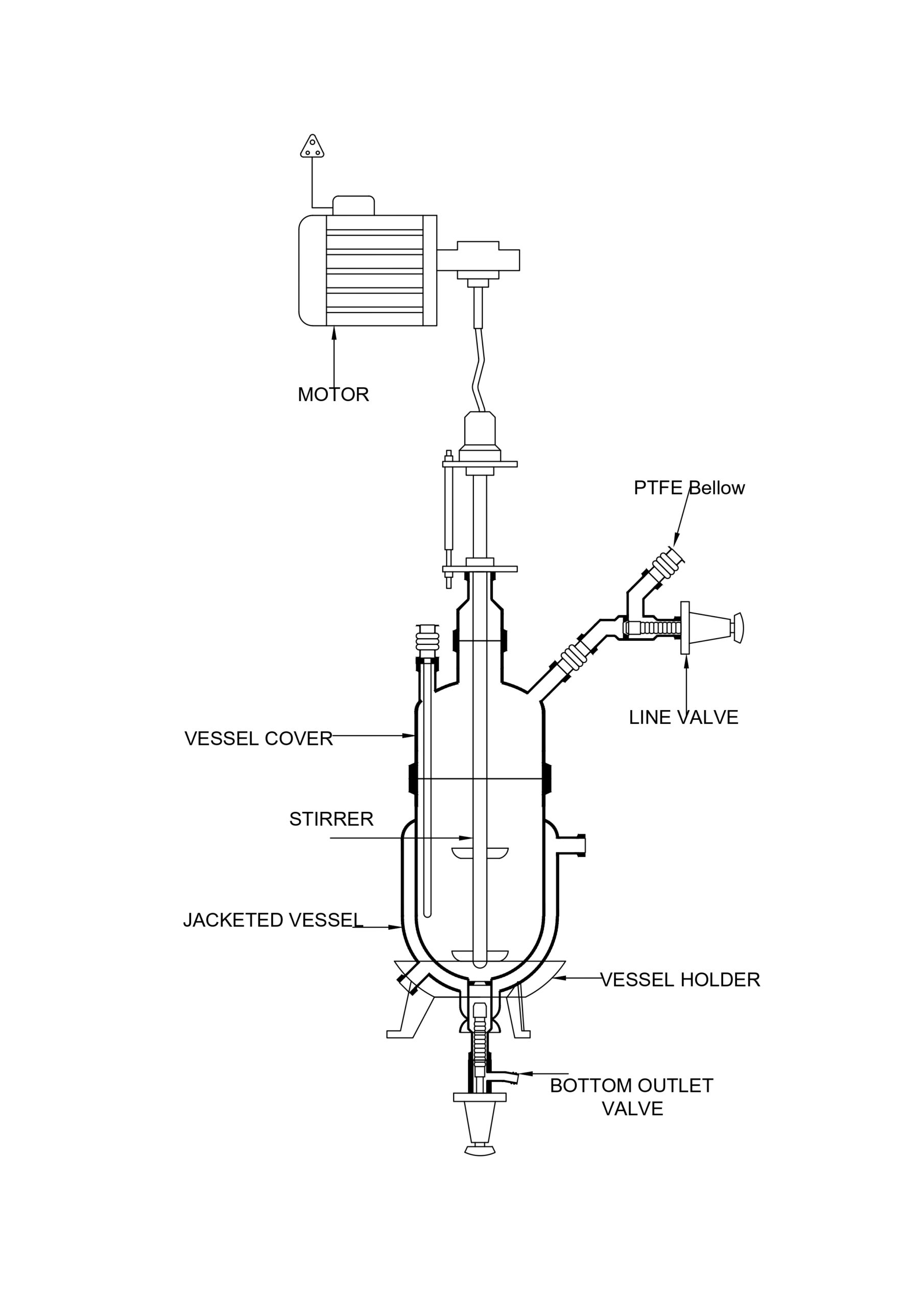

3. Jacketed Glass Mixing Reactor
Integrated heating / cooling jacket
Enables precise temperature control using oil, water, or glycol
Ideal for exothermic or temperature-sensitive processes

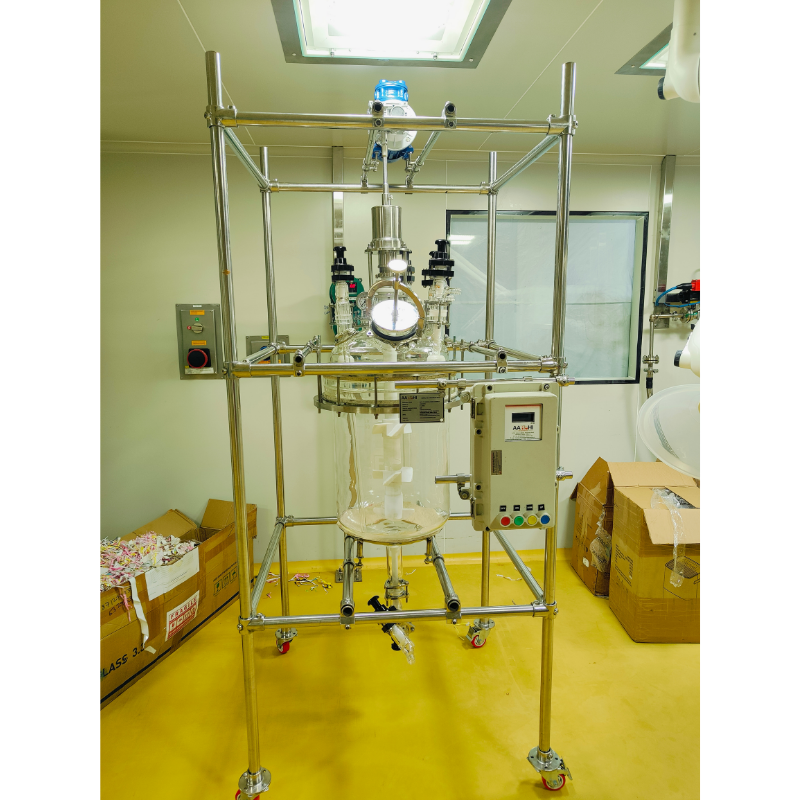

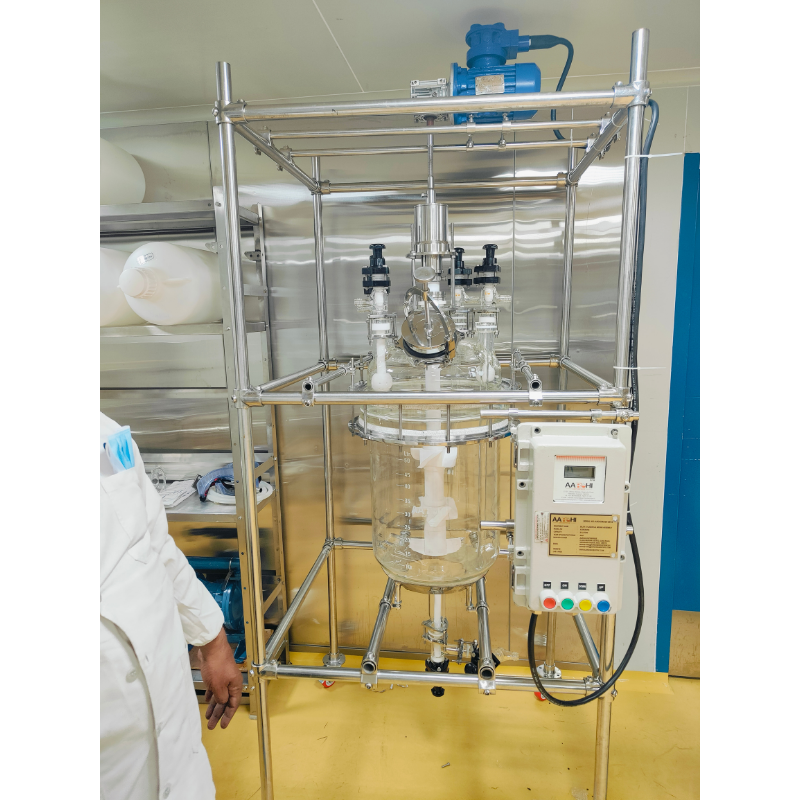

4. Mobile Glass Mixing Reactor (Trolley Mounted)
Mounted on SS or epoxy-coated mobile frame
Lockable caster wheels for easy relocation
Ideal for flexible R&D and pilot plant operations. It is also known as Laboratory Glass Mixing Reactor
Technical Specifications
| Parameter | Specification |
|---|---|
| Working Volume | 5 L to 300 L (custom up to 500 L on request) |
| Vessel Material | Borosilicate Glass 3.3 |
| Jacket Material | Borosilicate Glass / Optional SS Jacket |
| Stirrer Speed | Variable speed (upto 192 RPM) |
| Stirrer MOC | Borosilicate Glass / PTFE / PTFE-lined SS |
| Stirrer Types | Anchor, Propeller, Turbine, Paddle, Vortex |
| Sealing System | PTFE bellow seal / Mechanical seal |
| Temperature Range | –60 °C to +200 °C (higher with custom design) |
| Pressure/Vacuum | Full vacuum to 1Bar(g) (baesd on vessel capacity) |
| Drain System | Flush bottom outlet / Drain valve |
| Support Structure | SS304 / SS316 / Epoxy-coated MS |
| Mobility (Optional) | Trolley mounted with locking wheels |
Stirring & Agitation Options
Anchor Stirrer – viscous and high-volume mixing
Propeller Stirrer – low-viscosity liquids
Turbine Stirrer – gas-liquid dispersion
Glass Impeller with PTFE Blades
Custom agitator designs based on viscosity and application
All stirring assemblies are dynamically balanced for smooth, vibration-free operation.
Optional Accessories & Add-Ons
Reflux condenser
Addition funnel / metering pump
Temperature probe pocket
Vacuum adapter & gas inlet
Sampling port
Applications of Glass Mixing Reactors
Chemical synthesis & formulation
Pharmaceutical & API development
Specialty and fine chemicals
Polymer & resin mixing
Liquid–liquid blending
Solid–liquid dispersion
R&D, pilot plant & scale-up studies
Why Choose Aarohi Scientific?
In-house glass fabrication & custom design capability
Export-quality construction with global standards
Tailor-made reactors as per process requirement
Competitive pricing vs global brands
Proven installations across India & international markets
Industries We Serve
Pharmaceuticals
Chemicals & Petrochemicals
Biotechnology
Specialty Chemicals
Research Institutions & Universities
Looking for the right custom glass mixing reactor for your application? Get in touch with our team to receive expert assistance and a quick quotation.
